Continuous Ultrasonic Processing System
-Rated power: 12kW/20kW
-Process volume: 200~1000L/unit/batch
-Equipment composition: ultrasonic probe+flow cell+soundproof cabinet+control cabinet
-Targeted application: Industrial production lines that require nano-dispersion effects.
Description
Technical Parameters
Hangzhou Precision Machinery Co., Ltd. is one of the leading manufacturers and suppliers of continuous ultrasonic processing system in China. With a professional production team, we are able to meet the needs of the majority of our customers. Welcome to buy custom made continuous ultrasonic processing system from our factory.
continuous ultrasonic processing system
|
Frequency |
20kHz±0.5, automatic tracking |
|
Rated power |
12kW/20kW |
|
Process volume |
200~1000L/unit/batch |
|
Equipment composition |
Ultrasonic probe+flow cell+soundproof cabinet+control cabinet |
|
Targeted application |
Industrial production lines that require nano-dispersion effects. |
Equipment Overview
A continuous ultrasonic processing system is a continuous processing unit consisting of two or more ultrasonic reaction chambers connected in series. The reaction chamber concentrates the strongest ultrasonic vibration energy, which continuously processes the material without dead angles, thereby quickly obtaining finer and more stable nanomaterials.
The continuous ultrasonic processing system is a highly flexible system. We can design different reaction chambers according to the customer's material and flow rate requirements, and we can also adjust the number of reaction chambers to meet different processing volume requirements.
Equipment Parameters
|
Model |
JH-GY4IN1-12000 |
JH-GY4IN1-20000 |
|
Ultrasonic part |
||
|
Frequency |
20kHz±1 |
20kHz±1 |
|
Input voltage |
AC220V/380V, 50/60Hz |
AC380V,50/60Hz |
|
Rated power |
12kW |
20kW |
|
Amplitude(power) set |
20%~100% |
20%~100% |
|
Work mode |
Continuous or intermittent |
Continuous or intermittent |
|
Intermittent time set |
0~9999Min. |
0~9999Min. |
|
Horn material |
Titanium alloy |
Titanium alloy |
|
Horn diameter |
37~50mm |
37~50mm |
|
Horn length |
216~342mm |
216~342mm |
|
Chamber part |
||
|
Chamber material |
SUS304L/SUS316L |
SUS304L/SUS316L |
|
Chamber volume |
1~5L |
1~5L |
|
Chamber pressure against |
≤4Bar |
≤4Bar |
|
Temperature control |
Equipped with temperature jacket |
Equipped with temperature jacket |
|
Soundproof box part |
||
|
Soundproof box material |
Carbon steel painted with milky white |
Carbon steel painted with milky white |
|
Internal structure |
Apply sound insulation cotton |
Apply sound insulation cotton |
Why choose a continuous ultrasonic processing system?

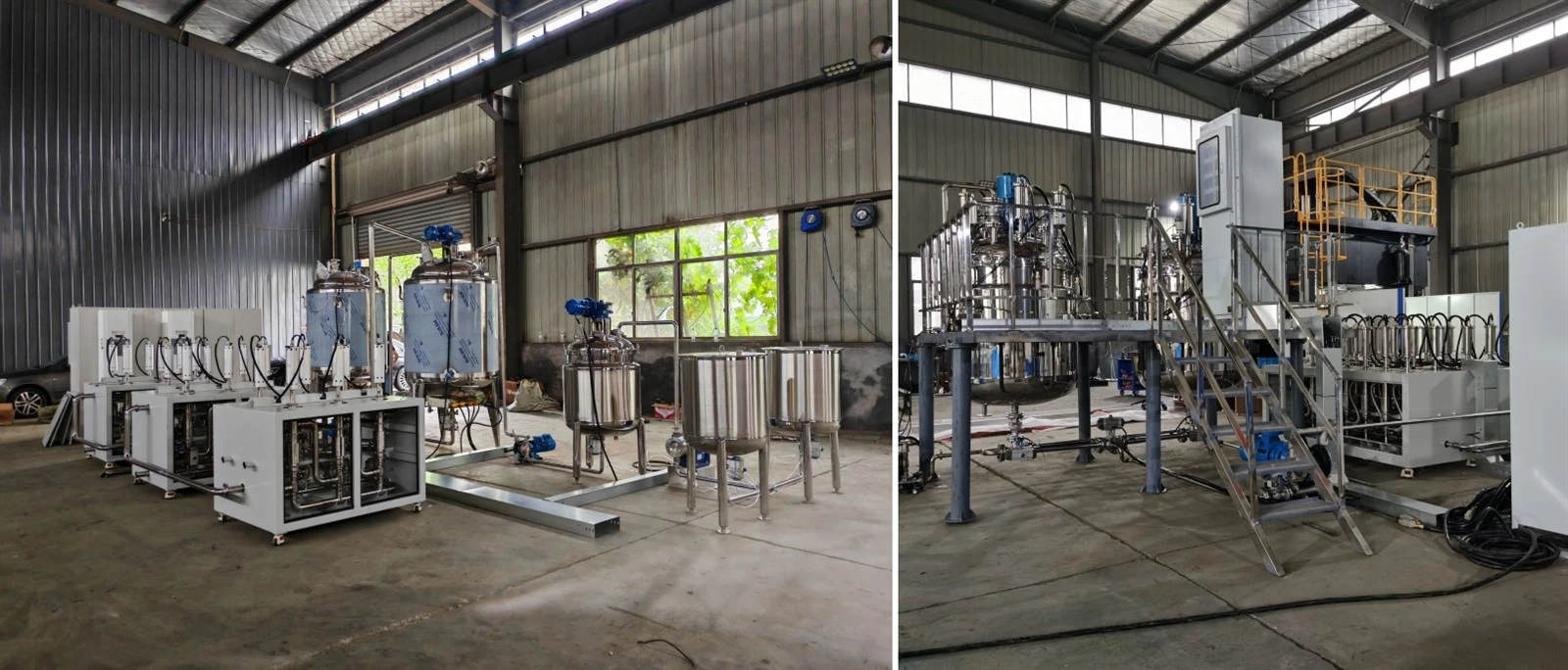

How does the continuous ultrasonic processing system looks like?
